12 / 14 / 16 Type Weld-On Hinges
One numbered weld-on hinge family with three published models: 12-A, 14-A and 16-A. Original dimensional values remain unchanged.
- Published sizes
- 3 catalog entries
- Catalog applications
- Gates, trailer doors & ramps
- Hinge family
- 12 / 14 / 16 typeThree catalog models
- Published sizes
- 3 catalog entries
- First listed model
- 12-A
- Last listed model
- 16-A
The product
Product overview.
The catalog groups 12-A, 14-A and 16-A within one product family. Each model retains its own D, D-1, L, d and L-1 values in a single comparison table.
The series numbers are model designations. The published D values are 11.80, 13.80 and 15.80, and the source does not print a unit for the table.
Original catalog data
Technical Specifications
Original catalog parameters. Units are not stated in the source; please confirm for your project.
| Model | D | D-1 | L | d | L-1 | Choose a size for your inquiry |
|---|---|---|---|---|---|---|
| 12-A | 11.80 | 14.10 | 80 | 6.80 | 30 | Select size |
| 14-A | 13.80 | 15.60 | 100 | 7.85 | 32 | Select size |
| 16-A | 15.80 | 18.20 | 120 | 8.85 | 44 | Select size |
Each row is a published catalog entry. Choose a size to add the exact notation to your inquiry.

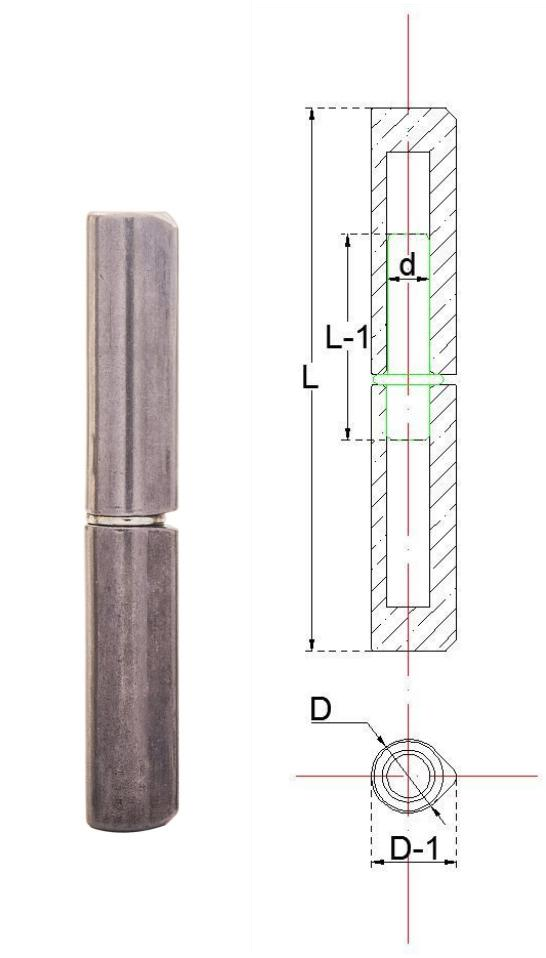

Technical Drawing
Original reference · catalog page 6
Catalog applications
For gates, trailer doors & ramps.
These applications are listed specifically for the 12 / 14 / 16 Type series. Confirm the selected model against the installation.
