Bearing Type Weld-On Hinges
Water-drop (teardrop) weld-on hinges with a bearing assembly. Compare 18 listed sizes, product photographs and the original reference drawing for your door or cabinet.
- Published sizes
- 18 catalog entries
- Catalog applications
- Steel doors & industrial cabinets
- Hinge family
- Bearing typeWater-drop profile
- Published sizes
- 18 catalog entries
- First listed size
- ф16*100mm
- Last listed size
- ф32*180mm
The product
Product overview.
The assembled and separated photographs show the bearing family’s water-drop profile and body arrangement. Compare those details with your installation, especially when an existing hinge has a similar outline but different internal parts.
Choose one complete entry from the 18-row size table. The reference drawing shows section views and dimension symbols; it is not a dimensioned drawing for every listed size. Send a marked sketch if a pin dimension, mounting position or clearance must match.
Include the door width, height, weight and hinge positions with your inquiry. The table records each hinge’s own mass, so it cannot be used as a door load rating.
Original catalog data
Available Sizes & Weights
Sizes reproduced as catalogued. Weight is product mass, not load capacity.
| Catalog size | Weight (g) | Choose a size for your inquiry |
|---|---|---|
| ф16*100mm | 142 | Select size |
| ф16*120mm | 158 | Select size |
| ф18*100mm | 180 | Select size |
| ф18*120mm | 230 | Select size |
| ф20*100mm | 242 | Select size |
| ф20*120mm | 288 | Select size |
| ф20*140mm | 330 | Select size |
| ф20*160mm | 391 | Select size |
| ф22*120mm | 354 | Select size |
| ф22*140mm | 416 | Select size |
| ф25*140mm | 525 | Select size |
| ф25*160mm | 597 | Select size |
| ф28*140mm | 694 | Select size |
| ф28*160mm | 798 | Select size |
| ф30*140mm | 754 | Select size |
| ф30*160mm | 869 | Select size |
| ф32*160mm | 917 | Select size |
| ф32*180mm | 1180 | Select size |
Each row is a published catalog entry. Choose a size to add the exact notation to your inquiry.

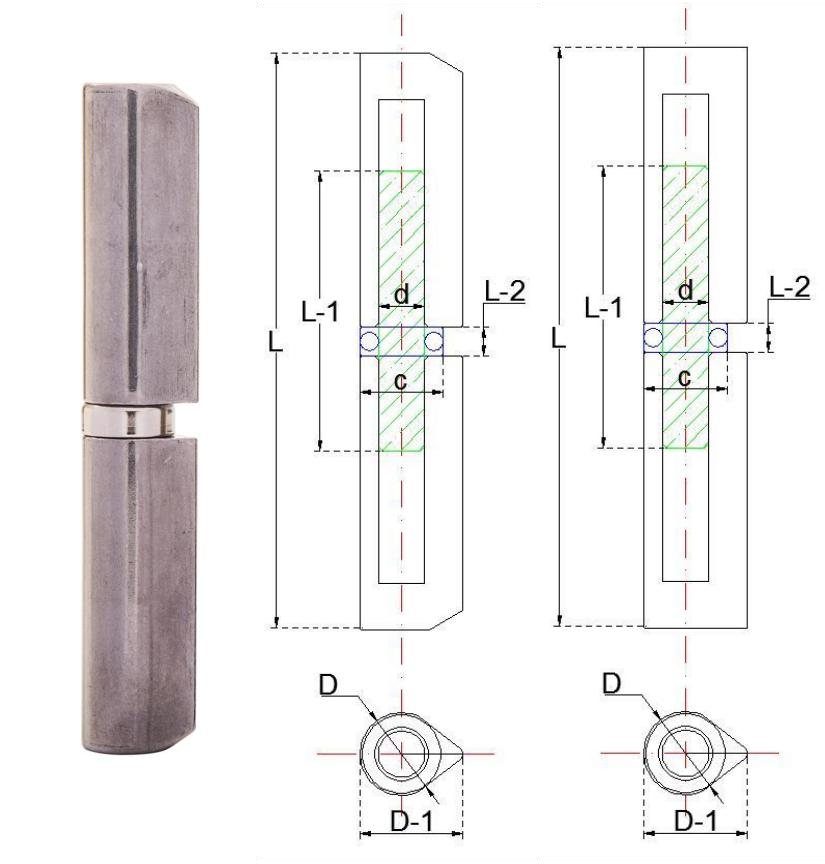

Technical Drawing
Original reference · catalog page 7
Catalog applications
For industrial doors & cabinets.
The catalog introduction identifies these uses for the water-drop hinge family. Confirm the hinge selection against your door or cabinet installation.
Electrical & industrial cabinets
Switch cabinets, control cabinets, network cabinets, GGD and AE cabinets, and other industrial cabinets.
Discuss your installationCustom hinge requirements
Need a Different Size or Configuration?
Send your required dimensions or technical drawing for review. Include the quantity and application so we can discuss the requirement.
Discuss Your Requirement Explore custom manufacturing
From the factory
Manufacturing & Quality
Lathe Processing
Lathe processing for manufactured hinge components.
Automatic Punching
Automatic punching as part of metal component processing.
Mass Assembly
Assembly and standardized product handling support production.
In-Process Inspection
Product checking tools are used during the production process.
Packing requirements
Packaging.
Include your packing requirements with the RFQ. These actual catalog photographs document packaging for the named series below.
The examples are for other catalog series, not a published packing specification for this bearing type.
Discuss your packing requirement
Kraft-paper inner boxes with plastic-film lining; corrugated outer packaging with sealing tape and packing straps.
Catalog page 16
Folded inner boxes with plastic-film lining; a composite wooden case secured with packing belts.
Catalog page 17Other constructions
Pin type
5 catalog sizesA separable pin construction in a water-drop profile, with five catalog size combinations.
20 type
2 catalog models20-A has chamfered ends; 20-B has right-angle ends. Both share the same published dimensions.
Round type
6 catalog sizesA round weld-on profile with six listed sizes. Custom requirements can also be discussed.
Before you inquire
Useful answers.
Are all diameter and length combinations listed?
No. The table contains 18 specific entries, not every combination between the first and last sizes. Select a complete row. If it does not match your requirement, mark the requested dimensions on a drawing for review.
Does Bearing Type mean a particular ball-bearing design?
The catalog identifies a bearing assembly but does not specify the bearing type, model or material. If your design requires a particular internal arrangement, include a section view or component specification so it can be confirmed.
How much door weight can this hinge support?
A door load rating is not published here. For example, the ф16*100mm entry weighs 142 g; that is the hinge’s own mass. Send the door dimensions and weight, hinge count and positions, and an installation drawing for a suitability review.
Can I request a different size or configuration?
Send the closest listed entry with the requested change marked beside it. Include quantity and installation details. The proposed configuration needs Requirement / Specification Confirmation before it can be treated as an available option.
What should I attach to a bearing-hinge inquiry?
Attach the current drawing or a marked sketch showing the hinge, door and frame. Identify the exact size, fixed dimensions, quantity and any material, finish or bearing requirements. Use the form’s drawing and image fields, then check the submission result.
