20 Type Weld-On Hinges
Two catalog variants with the same published dimensions: Type A has chamfered ends, while Type B has right-angle ends.
- Published sizes
- 2 catalog entries
- Catalog applications
- Steel doors & industrial cabinets
- Hinge family
- 20 typeChamfered or square ends
- Published sizes
- 2 catalog entries
- First listed model
- 20-A
- Last listed model
- 20-B
The product
Product overview.
The 20 Type family contains two source-defined end structures. 20-A is chamfered at both ends; 20-B has right-angle ends. No additional versions are inferred.
Both variants share the exact published D, D-1, L, d, L-1, c and L-2 values shown below. The catalog does not print a unit for this table.
Original catalog data
Technical Specifications
Original catalog parameters. Units are not stated in the source; please confirm for your project.
| Model | D | D-1 | L | d | L-1 | c | L-2 | Choose a size for your inquiry |
|---|---|---|---|---|---|---|---|---|
| 20-A | 20.00 | 24.80 | 140 | 10.85 | 60 | 20.00 | 7 | Select size |
| 20-B | 20.00 | 24.80 | 140 | 10.85 | 60 | 20.00 | 7 | Select size |
Each row is a published catalog entry. Choose a size to add the exact notation to your inquiry.

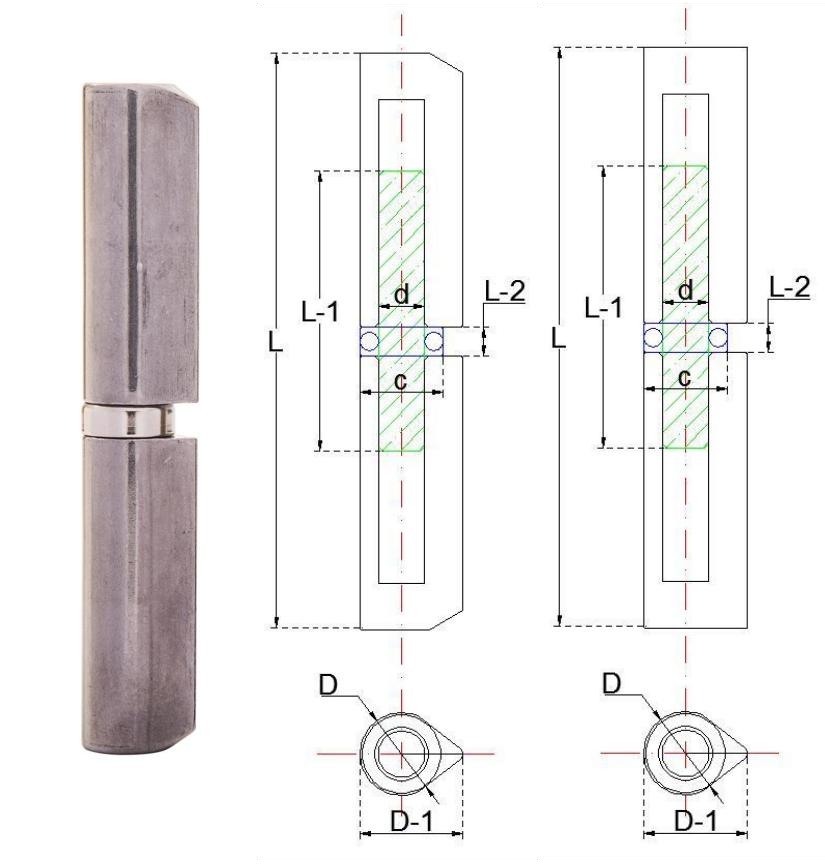

Technical Drawing
Original reference · catalog page 5
Catalog applications
For industrial doors & cabinets.
These applications are documented for the water-drop hinge family. Confirm the 20-A or 20-B end structure against your installation.
